PTO Applications

Woods Brushbull Mowers and Heritage

Models : BB48X, BB60X, BB72X, HC48, HC54, HC60, HC72

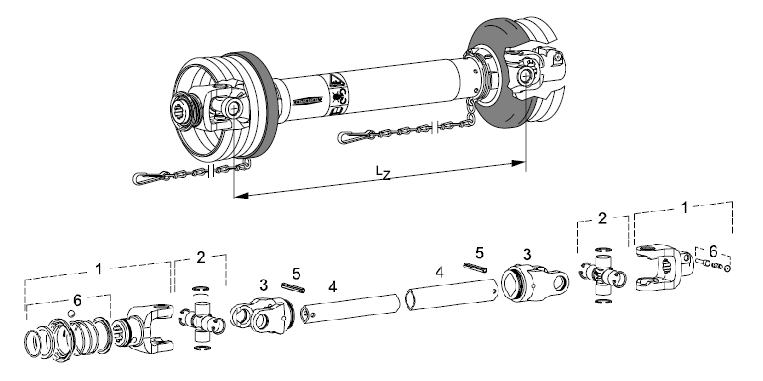

(Original Equipment is Walterscheid 2300 - shown above)

MODEL TYPE HP Spindles PROTECTION PTO Driveline
HC48 3-POINT
15-50
1
 Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4
HC54 3-POINT
15-50
1
 Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4
HC60 3-POINT
15-50
1
 Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4
HC72 3-POINT
15-50
1
 Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4
BB48X 3-POINT
15-50
1
 Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4
BB60X 3-POINT
15-50
1
 Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4
BB72X 3-POINT
30-65
1
 Shear Pin Yoke or Clutch
CAT3 * 2300 or BYP4



MAIN SHAFT: CAT 3 STANDARD

Our research indicates most tractors using 1.375-6 spline

and input shaft is 1.375" or 1.50" round with shear pin or 2 disc clutch

Other combinations are available.





CAT 3 Standard (Walterscheid 2300 series) or (Bondioli and Pavesi Size 4- not shown)

Tractor Half (2300)

Output Shaft
1/2 shaft Part Number
#2300-1b-06
#2300-1b-21

Implement Half (2300)

Input Shaft
1/2 shaft Part Number
#2300-2a-06
#2300-2a-21
must specify
Walterscheid 2300 catalog page

Implement Attachment Options

Standard 1.375" Pin Hole yoke =

BYP4 # 211049251

specify clamp or pin hole yoke as needed




please excuse any errors in our model numbers and specifications research
