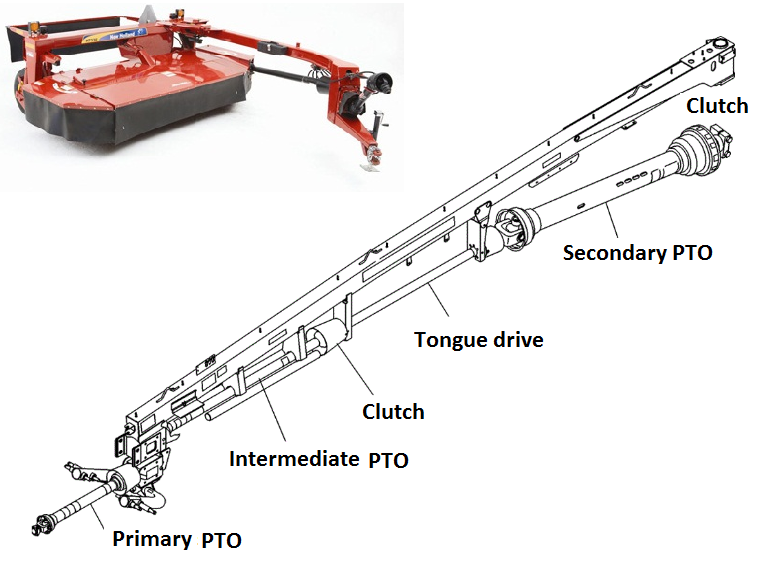

All discbines use multiple PTO shafts and a combination clutch.
The types of PTOs and clutch location vary from model to model.
Models below were originally equipped with Weasler and or Bondioli & Pavesi PTOs.
PTO Shafts for :
-
BALERS, ROUND
- Case Round Balers : Models RB444, RB454, RB455A, RB464, RB55
- John Deere Round Balers: 469, 569
- John Deere Round Balers: :448, 458 Standard, 458, 458 Silage
- Krone Round Balers : Models : KR100 / 130 / 155 / 160 / 1250
- New Holland Round Balers, Models: BR7050, BR7060, BR7070, BR BALERS, SQUARE
- Hesston Balers Models: 4690, 4690S
- John Deere Square Balers
- Krone BIGPack Square Balers: 1290, 1290 HDP, 1290 XC, 12130
- New Holland BigBaler 330 , 340
- New Holland Square Balers : 9000 Models DISCBINES
- Hesston & Case Discbines, 1340
- New Holland Discbines 1431, Case DC132
- New Holland Discbines Model 411
- New Holland Discbines Models: 1409,1410,1411,1412, 1431, 143
- New Holland Discbines: H7220, H7320, H7230, H7330, H7450, H7 FLAIL SHREDDERS
- Alloway Flail Shredders
- John Deere Flail Shredder 520 MIXERS
- Jaylor Vertical Feed Mixers: Single Auger, Twin Auger
- Peecon Vertical Feed Mixers: 1100, 1300, 1500
- Peecon Vertical Feed Mixers: 1600, 1700
- Supreme Feed Mixers MOWERS, FLEXWING
- Bush Hog Flex Wing Mowers Models: 2515, 2610L, 2615L, 2710L,
- Bush Hog Flexwing Mowers Model 2212
- Bush Hog Flexwing Mowers Model 3710, 3715
- John Deere Flex Wing Mowers : CX20, CX15, HX20, HX15, MX15
- Schulte FX-318 Bat Wing Mower
- Schulte FX-530,5026, FX-520 Bat Wing Mower
- Schulte FX-742 Bat Wing Mower
- Woods Batwing Mowers: 1800, 2400X
- Woods Batwing Mowers: 3180, 3240, 2162, 315, 126, 1260 MOWERS, ROTARY CUTTE
- Bush Hog Multi Spindle Rotary Cutters Models: 3210, 3209, 32
- Bush Hog Single Rotary Cutters
- John Deere Multi Spindle Rotary Cutters Models: HX10, HX14
- John Deere Rotary Cutters, 609,709
- Landpride Rotary Mowers
- Woods Brushbull Mowers : 48, 60, 72, HC48, HC54, HC60, HC72
- Woods Heavy Duty Mowers Models : BB6000X, BB7200X, BB8400X,
- Woods Medium Duty Mowers Models : BB84X, BB600X, BB720X, BB8
- Woods Multi Spindle Rotary Cutters
- Woods Single Rotary Mowers MD MULCHERS
- Fecon Mulchers Models: BH74, BH85, BH99, BH200 SHREDDERS
- Flory WS910 Self Propelled Brush Shredder SNOWBLOWERS
- Woods Snowblowers SPRAYERS
- Nelson 4000 Sprayers
- Orchard, Vineyard Sprayers 100 HP
- Orchard, Vineyard Sprayers 60 HP
- Rears PUL Blast Sprayers SPREADERS
- Meyer Manure Spreaders : most models TILLERS
- Tillers TREECUTTER
- Brown Tree Cutters Models: TCF, TCO, TCR, 2000 Series
New Holland Discbines
Models: H7220, H7230, H7320, H7330, H7450, H7460, H7550, H7560
| Model: | Primary | Intermediate | Secondary | HP | RPM |
|---|---|---|---|---|---|
| H7220 | 35N CV |
35N Square |
65 |
540 |
|
| H7230 | 55N CV or standard |
Jack style 1.375-21 | H8 double CV |
80 |
540/1000 |
| H7320 | 35N CV |
35N Square |
65 |
540 |
|
| H7330 | 55N CV or standard |
Jack Style 1.375-21 | H8 double CV |
80 |
540/1000 |
| H7450 | 55N Double 80/50 CV or 55N standard (for swivel) |
55N standard |
90 |
1000 |
|
| H7460 | 55N Standard |
55N Square w/clutch |
55N Standard |
100 |
1000 |
| H7550 | 55N Double 80/50 CV or 55N standard (for swivel) |
55N standard |
55N standard |
90 |
1000 |
| H7560 | 55N Standard |
55N Square w/clutch |
55N standard |
100 |
1000 |
MAIN SHAFT : CAT 6 Constant Velocity
Implement input shaft is usually 1.375-21 spline
Most INTERMEDIATE and SECONDARY PTO: 55N Standard (Splined)
Secondary PTOs
Many, but not all Discbine secondary shafts are a double CV with combination clutch
Our recommended replacement: Category 5 Double CV
Part # DH8R142USK00K02
FNT34 Combination Clutch (friction and overrunning)
